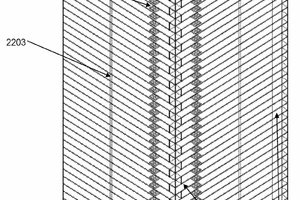

Wall system with novel structures and method of construction thereof

(10) WO 2022/246043 A1

(22) 19.05.2022

(43) 24.11.2022

(57) A method for constructing a three-dimensional (3D) printer-printable wall system includes forming a concrete foundation on a substrate, where the concrete foundation embeds horizontal and vertical reinforcements. A first inner wythe horizontal layer and a first outer wythe horizontal layer are printed using a concrete mixture from a 3D printer. The first inner wythe horizontal layer and the first outer wythe horizontal layer are separated by an interstitial space. A first wall dam is placed between the first inner wythe horizontal layer and the first outer wythe horizontal layer in the interstitial space.

(71) Diamond Age 3D, Inc. [US/US]; 6200 Stoneridge Mall Rd., Suite 300, Pleasanton, CA 95488 (US)

Related articles:

Issue 2022-07

(10) WO 2022/069348 Al (22) 23.09.2021 (43) 07.04.2022 (57) The invention relates to a foundation for a wind turbine, wherein the foundation (10) comprises substantially prefabri­cated elements,...

more
Issue 2023-01

(10) JP2021130910 (22) 18.02.2020 (43) 09.09.2021 (57) Provided is a manufacturing method of a structure 1 having multiple wall modules 11. Each of the multiple wall modules 11 has a vertical wall...

more
Issue 2023-03

(10) GB2607644, (22) 15.10.2021 (43) 14.12.2022 (57) A lightweight composite structural construction panel comprises a concrete core portion 11 with a first and a second major surface and a compressed...

more
Issue 2023-01

(10) WO 2022/217652 A1 (22) 28.04.2021 (43) 20.10.2022 (57) A fabricated leveling composite radiation energy-saving concrete wall and a construction method therefor. The fabricated leveling composite...

more
Issue 2022-12

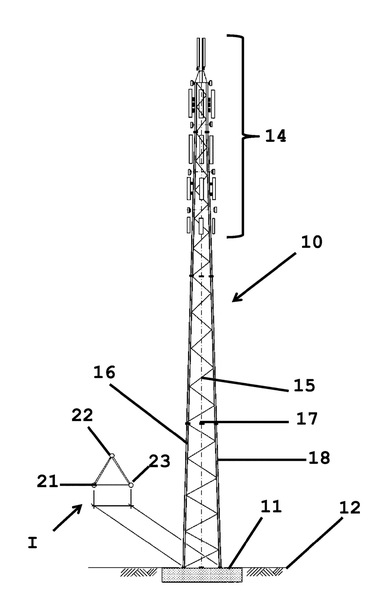

(10) DE 10 2022 106 027 A1 (22) 15.03.2022 (43) 22.09.2022 (57) Die Erfindung betrifft ein Gründungselement für ein Mastfundament, bestehend aus einem Fundamentblock, der sich aus einer Grundfläche...
