Reinforced concrete test block bonding performance test platform in engineering environment
(10) CN120142157
(22) 15.05.2025
(43) 13.06.2025

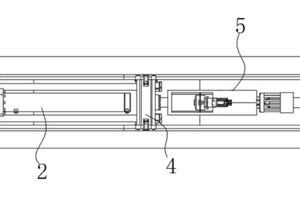

(57) The invention discloses a platform for testing the bonding performance of a reinforced concrete test block in an engineering environment, and relates to the technical field of concrete testing, the platform comprises a testing groove, the top of the testing groove is detachably provided with a cover plate, and the cover plate and the testing groove are matched to form a sealed testing space; the drawing mechanism is mounted in the test groove, and the drawing mechanism is provided with a drawing end; the two clamping plates are symmetrically arranged, the clamping plates are arranged in the testing groove, a pressurizing cylinder is connected between the clamping plates and the testing groove, and a positioning space for a test piece is formed between the two clamping plates; the steel bar connecting assembly is connected between the drawing end and the test piece; wherein a visual sensing module, a heating module and a refrigeration module corresponding to the test piece are integrated on the inner wall of the cover plate, and the overall automation degree is high.
(71) Road & Bridge Construction Co., Ltd. of MCC Group, CN
