Prefabricated concrete shear wall with formwork meshes and construction method thereof

(10) LU503116

(22) 29.11.2022

(43) 05.06.2023

(57) The present invention is applicable for construction engineering technical fields, and provides a prefabricated concrete shear wall with formwork meshes and construction method thereof, wherein the prefabricated concrete shear wall with formwork meshes comprises formwork meshes, horizontal rebars and vertical rebars; the formwork meshes are configured axially along a direction vertical to the formwork meshes to form composite hollow grouting holes; the horizontal rebars are distributed at both sides of outer surfaces of the formwork meshes; the vertical rebars are axially distributed at inner surfaces of the formwork meshes; the mesh formworks, the horizontal rebars and the vertical rebars form the prefabricated shear wall structures by concrete pouring; in the present invention, by providing the formwork meshes, when pouring concrete ...

(71) Jilin Jianzhu University, CN

x

Related articles:

Issue 08/2021 Prefabricated wall and eassembly structure for prefabricated building, and construction method therefor

Prefabricated wall and eassembly structure for prefabricated building and construction method therefor

(11) EP 3 822 422 Al (22) 10.07.2019 (43) 19.05.2021 Bulletin 2021/20 (57) Disclosed is a prefabricated wall (1) for a prefabricated building. The prefabricated wall comprises a concrete body (2) and...

more
Issue 05/2012

Prefabricated wall panels

(10) US 2012/0047816 A1 (22) Aug.24,2010 (43) Mar. 1, 2012 (73) EMPIRE TECHNOLOGY DEVELOPMENT LLC, Wilmington, DE (US) (57) A prefabricated wall panel includes molds for casting reinforced concrete...

more
Issue 07/2022

The gripper for removing a formwork tie, formwork tie for placing on formwork elements of a concrete wall form, and method for removing ...

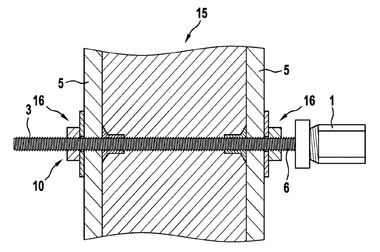

(10) WO 2022/073873 Al (22) 01.10.2021 (43) 14.04.2022 (57) The invention relates to a tie gripper (1) for removing a formwork tie (10) placed between formwork elements (5) of a concrete wall form...
