Multi-layer concrete block for a paving, as well as paving and method for producing a concrete block
(10) US2025230614A1
(22) 01.03.2023
(43) 17.07.2025

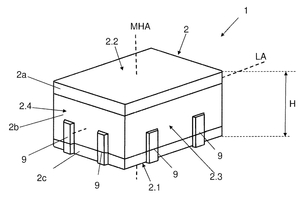

(57) The invention relates to a concrete block in the form of a planar element that can be laid in combination in order to create a paving. The concrete block has at least one multi-layer concrete block body having at least one concrete-block lower face suitable for being laid on a foundation layer of an underlying surface, and a concrete-block upper face opposite thereto. The multi-layer concrete block body has at least one first concrete-block layer disposed on the concrete-block upper face and in the form of a face concrete layer, at least one second concrete-block layer in the form of a core concrete layer, as well as a third concrete-block layer. The second concrete-block layers is disposed between the first and the third concrete-block layer. The third concrete-block layer has an increased tensile strength.
(71) Godelmann GmbH & Co. KG, DE
