Concrete Anchor Rod Positioning and Securement Device and Method
(10) US2024309642A1
(22) 14.03.2024
(43) 19.09.2024

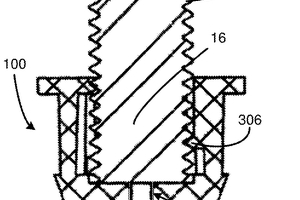

(57) A securement device having a rod receiver attachable to the end of an anchor rod, the securement device having a headless nail slidably extendable from a first position within the device to a second position protruding outwardly from the end of the securement device opposite the rod receiver, and a method of positioning and securing an anchor rod attached to the securement device in a desired location on a concrete form deck within a rebar structure for a concrete formation, so that the headless nails may release from the securement device body when the deck is removed after the concrete sets, leaving an innocuous nail void in the concrete that may serve as a functional attachment recess.
(71) Grigoryants Yuri, US
