(1o) US 9,347,232 B1

Lifting and leveling assembly for precast ­concrete slabs and method

(10) US 9,347,232 B1

(22) 13.01. 2015

(45) 24.05.2016

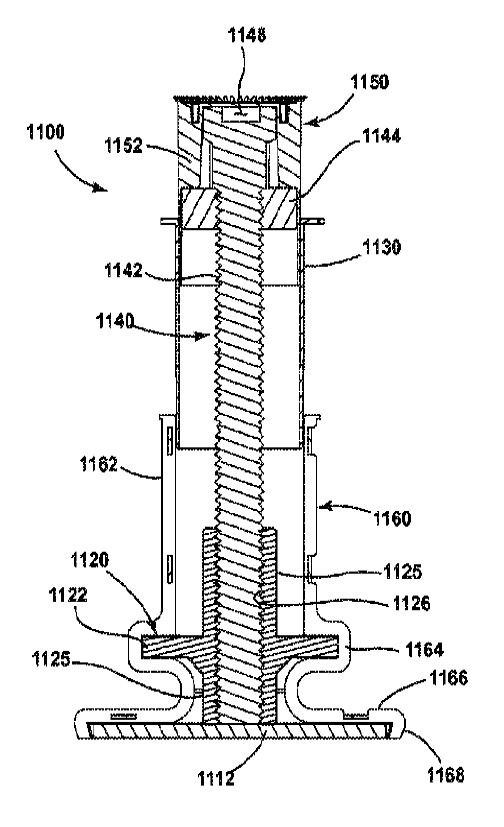

(57) A lifting and leveling assembly configured to be embedded in a precast concrete slab for lifting a leveling a precast concrete slab includes a base plate, a threaded sleeve, an anchor plate, a thread protecting sleeve, a threaded lifting bolt and an end cap. Rotating the threaded lifting bolt in a first direction positions a bolt head on the threaded lifting bolt above a top surface of a precast concrete slab to accommodate the attach­ment of a lifting device. Rotating the threaded lifting bolt in a second direction positions the bolt...

Related articles:

Issue 09/2020

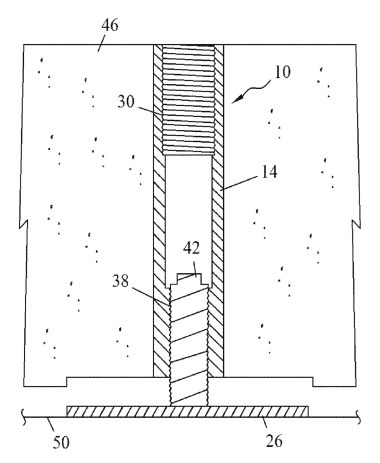

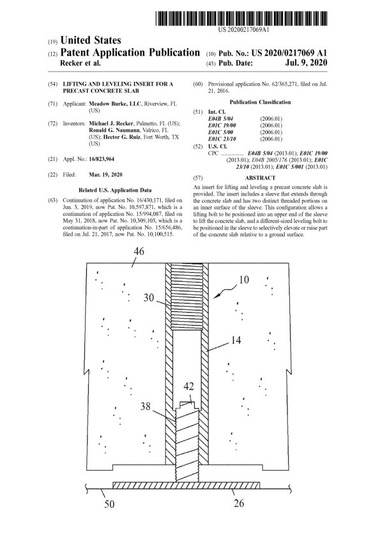

Lifting and leveling inserte for a precast concrete slab

(10) US 2020/0217069 Al (22) 19.03.2020 (43) 09.07.2020 (57) An insert for lifting and leveling a precast concrete slab is provided. The insert includes a sleeve that extends through the concrete slab...

more
Issue 11/2018

Lifting and leveling insert for a precast concrete slab

(10) US 2018/0274233 Al (22)  31.05.2018 (43) 27.09.2018 (57) An insert for lifting and leveling a precast concrete slab is provided. The insert includes a sleeve that extends through the concrete...

more
Issue 11/2019

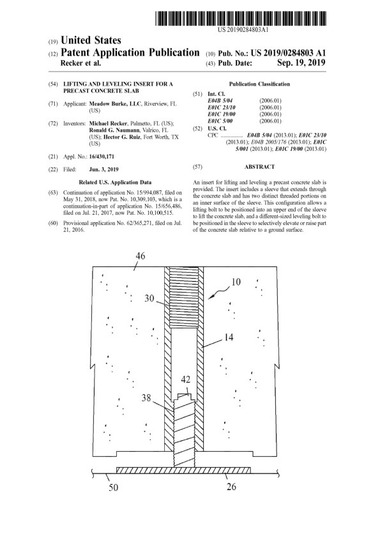

Lifting and leveling insert for a precast concrete slab

(10) US 2019/0284803 Al (22) 03.06.2019 (43) 19.09.2019 (57) An insert for lifting and leveling a precast concrete slab is provided. The insert includes a sleeve that extends through the concrete slab...

more
Issue 07/2019

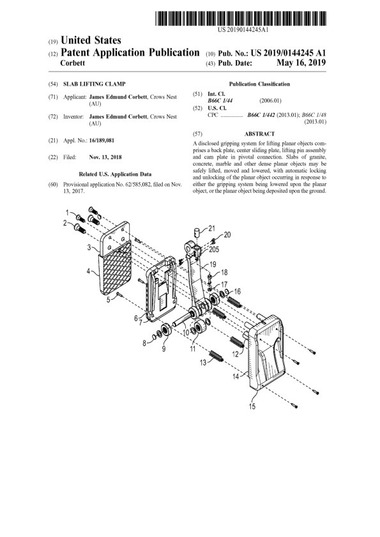

Slab lifting clamp

(10) US 2019/0144245 Al (22) 13.11.2018 (43) 16.05.2019 (57) A disclosed gripping system for lifting planar objects com­prises a back plate, center sliding plate, lifting pin assembly and cam plate...

more
Issue 04/2019

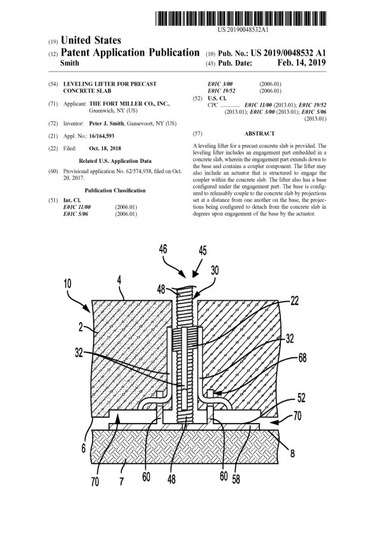

Leveling lifter for precast concrete slab
