Laminated bamboo platform and concrete composite slab system

(10) US 2020/0123759 Al

(22) 20.12.2019

(43) 23.04.2020

(57) System used as a building material. A platform, is formed from joined, substantially coplanar boards with connector plates partially embedded between the boards such that a portion of the connector plates extend above the platform‘s top surface. A reinforcing material (e.g., wire mesh and/or rebar) can be arranged on the prongs or other portion of the connector plates spaced above the platform and concrete is poured over the reinforcing mate­rial and allowed to cure, forming a reinforced concrete layer that encases the connector plates and reinforcing material. The connector plates act as standoffs and help to suspend the reinforcing material in the middle of the concrete layer to increase the strength of the reinforced concrete and to fixedly anchor and bind the concrete layer to the platform, so as to establish a composite action between the platform and the concrete.

(71) Resource Fiber LLC, Homewood, AL (US)

Related articles:

Issue 2019-11

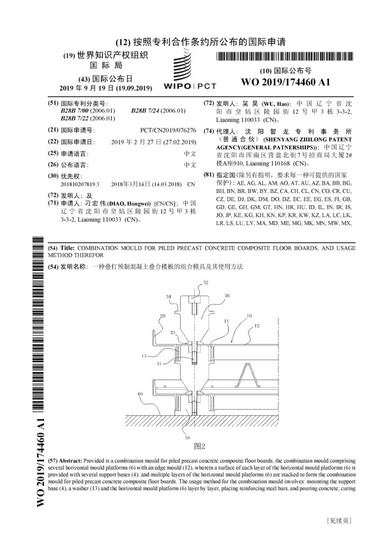

Combination mold for piled precast concrete composite floor boards, and usage method therefor
