Duct coupler for use with ducts in a wet joint
of segmental concrete construction

(10) US 2021/0062941 Al

(22) 11.11.2020

(43) 04.03.2021

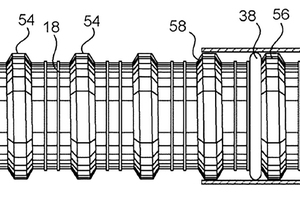

(57) A duct coupling system has a first concrete segment, a first duct positioned in the first concrete segment so as to have an end extending outwardly therefrom, a second concrete seg­ment, a second duct positioned in the second concrete segment so as to have an end extending outwardly therefrom in a direction toward the end of the first duct, and a tubular member slidably positioned over the ends of the first and second ducts so as to join the first and second ducts together in a liquid-tight relationship. The first concrete segment is positioned in spaced relation to the second concrete seg­ment. A wet joint is formed in the space between the first concrete segment and the second concrete segment. The tubular member is embedded in the wet joint.

(71) Felix Sorkin, Stafford; TX (US)


Related articles:

Issue 10/2012

Wet cast concrete segmental retaining wall block

(10) CA 2730187 A 1 (22) 2011/02/02 (41) 2012/08/02 (71) MATYS, TYLER, CA; RISI, ANGELO, CA (57) A concrete block and a concrete block set for building a segmental retaining wall. Each block of the...

Issue 09/2023

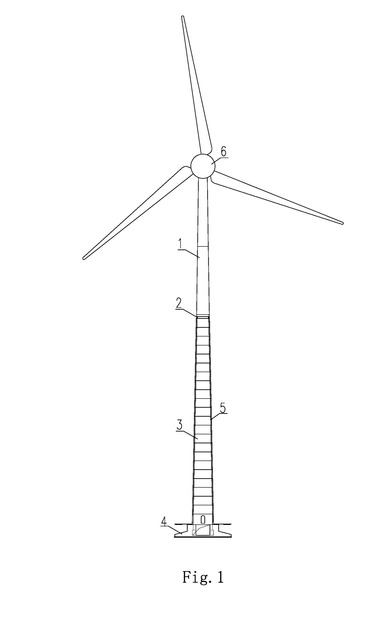

Grouting-Free-Dry-Type prestressed bolt segment-assembled prefabricated concrete tower

(10) EP4202209A1 (22) 17.06.2021 (43) 28.06.2023 (57) The present invention discloses a grouting-free dry-type prestressed bolt segment-assembled prefabricated concrete tower, comprising a top steel...

Issue 02/2020 Material development

Duct covers made from carbon-reinforced concrete

Carbon-reinforced concrete is suitable for a number of applications, including façades, walls, columns, beams, floor slabs, and modular buildings, as well as for repairing and upgrading existing...

Issue 11/2020 KLEIHUES/FBS

Rectangular concrete pipes for infrastructure duct

At the Melaten Campus of RWTH Aachen University, the Aachen branch of the North Rhine-Westphalianbuilding and real estate management agency plans to build a new center of digitally networked...

Issue 06/2022

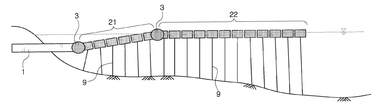

Flexible joint connecting device of precast body segment, precast body segment joining-type underwater tunnel construction method using same, and underwater tunnel constructed thereby
