Concrete slab panel forming, reinforcing, joint sealing and edge protecting framing system

(10) ) 2 965 861 A1

(22) 01.05.2017

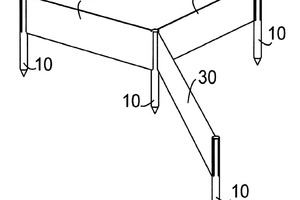

(57) A device for forming, reinforcing, joint sealing and edge protecting of a concrete slab panel, wherein the concrete slab panel having a volume, a length, a width, and a surface. The device comprising of an elongated post having a body, a top end and a bottom end with a plurality of elongated grooves extending along the body; a mounting frame has a length, a width and a thickness. The mounting frames having a connecting means to connect the mounting frame to the posts. The present invention eliminates the needs for saw-cut lines for crack inducement and acts as a joint sealer for the concrete slab to relieve the tensile stresses.



Related articles:

Issue 2018-06

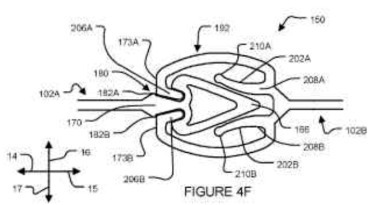

Panel-to-panel connections for forming concrete structures
