Implementing Modern 3D CAD Software for Precast Planning

Save Time and Reduce Costs

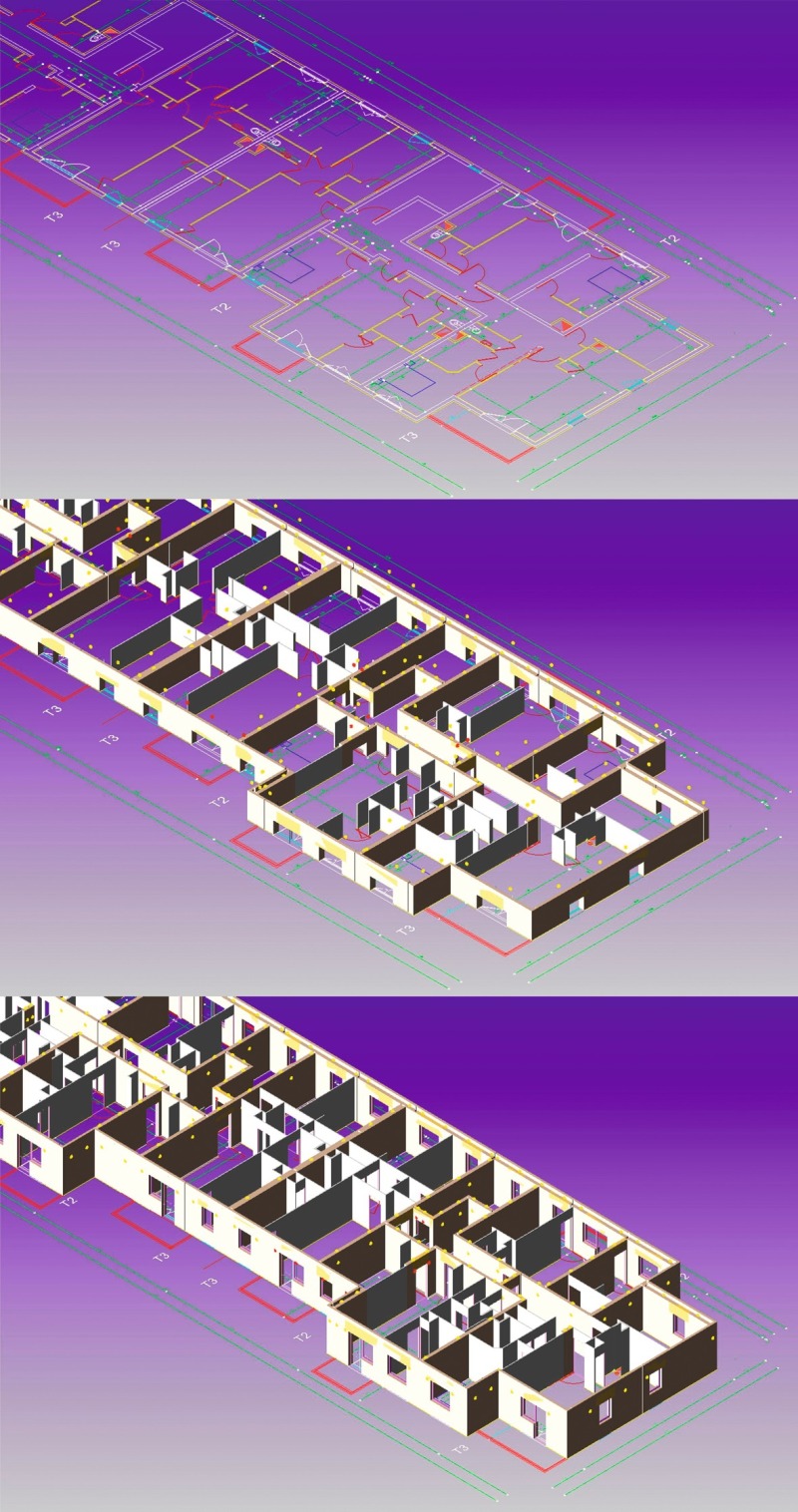

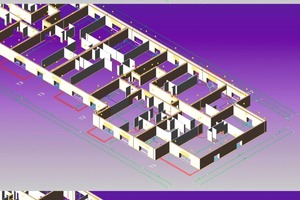

Fig. 1 It is possible to work on all positions of a precast component within a building model. This provides significant advantages in terms of processing speed and planning quality.Abb. 1 Alle Fertigteilpositionen können innerhalb eines gemeinsamen Gebäudemodells bearbeitet werden. Dies generiert deutliche Vorteile im Bezug auf Bearbeitungsgeschwindigkeit und Planungsqualität.

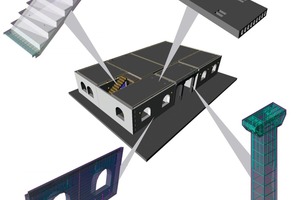

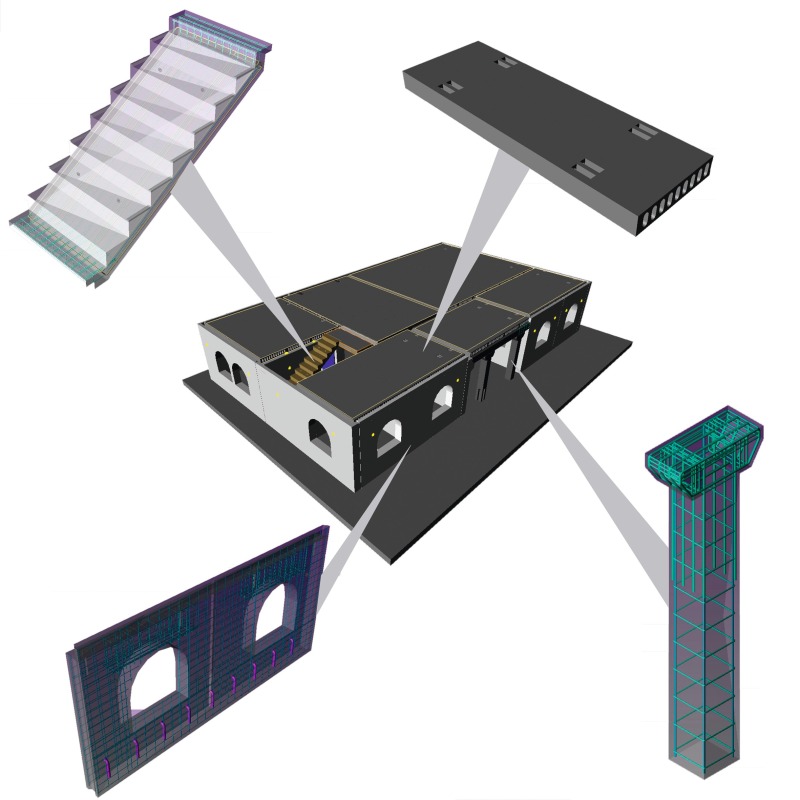

Fig. 2 Parametric functions simplify the data transfer from 2D CAD files and the creation of a three dimensional building model.
Abb. 2 Parametrisierte Funktionen vereinfachen die Datenübernahme aus 2D-CAD Dateien und die Erzeugung des dreidimensionalen Gebäudemodells.

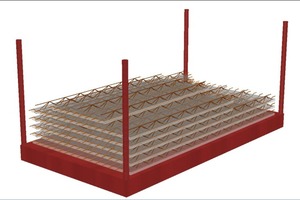

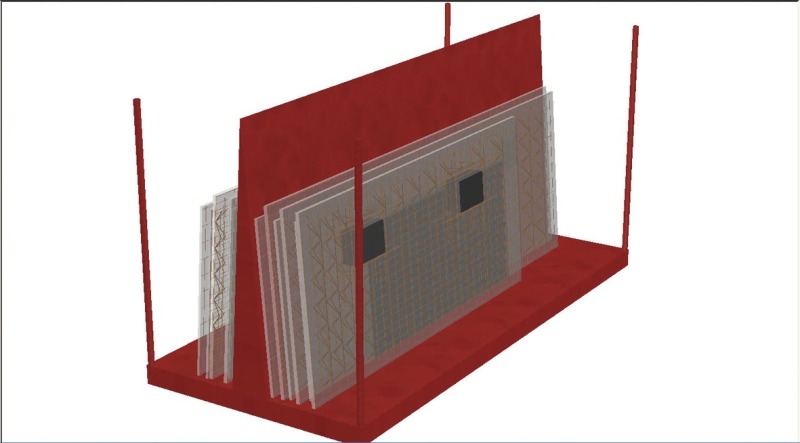

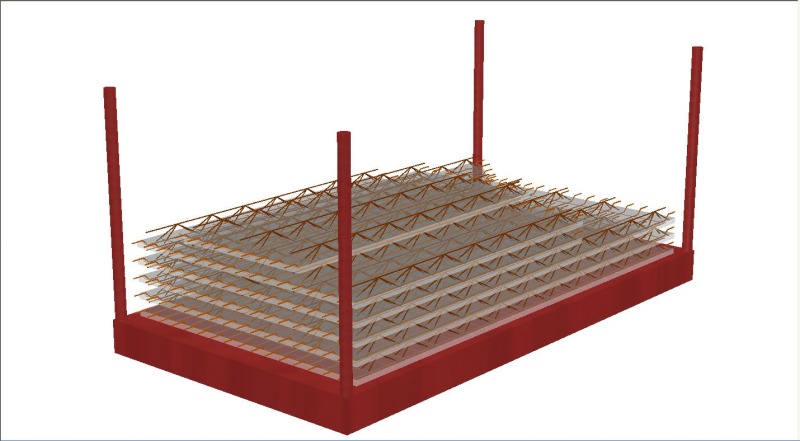

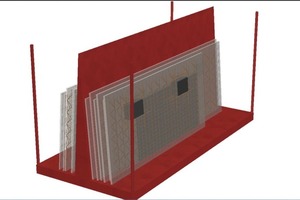

Fig. 3 and b Integrated modules for transport planning and palletization complete the functions of the program and thus the software is a comprehensive planning tool for the overall production process in precast concrete plants.
Abb. 3a und b Integrierte Module zur Transportplanung und Palettierung runden den Funktionsumfang ab und machen die Software zu einem vollwertigen Planungstool für den gesamten Produktionsprozess im Betonfertigteilwerk

Fig. 3 and b Integrierte Module zur Transportplanung und Palettierung runden den Funktionsumfang ab und machen die Software zu einem vollwertigen Planungstool für den gesamten

 Technical project processing in a precast concrete part plant is not only one of the most important and most sensitive areas in this type of company, but is also generally the department that offers the greatest potential for optimization. Because of parametric software solutions for such specialized and regional requirements are not siutable , part of the planning process is still carried out by hand or using standard planning software such as AutoCAD.

This often leads to valuable time being spent on planning that could be better used later on in the project. Self-developed macros offer some automation for planning work, but do not generally represent an effective step toward greater efficiency.

Idat GmbH (a German software company with more than 25 years experience in software development for the precast part industry) has developed a software based on AutoCad that meets the specific requirements of precast part manufacturers and fills this gap in the market.

The governing principle behind the overall functionality of the software is to...
