Successful in the Manufacturing Process

Spacer System for Double and Thermal Walls

 For two years now, the DowaTherm® spacer system developed by B.T. innovation has been established on the market of concrete and precast concrete. Since then, the innovative system has found more and more users. The new spacer system has been developed in close cooperation with company „Müller-Altvatter“ Betonfertigteile Holzmindern/Madgeburg up to the present version for the application in practice.

For this purpose, the advantages provided by the fiberglass composite material in combination with the variable spacer system have been further developed and the requirements deriving from the new concrete standard with regard to a higher concrete cover and improved installation conditions have been implemented shortly.

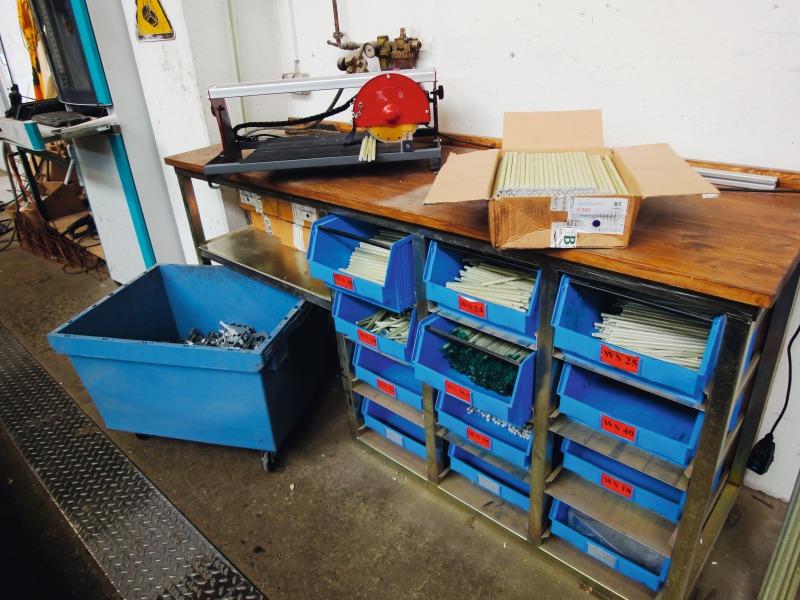

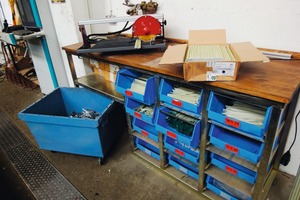

The new spacer system, a new design of the foot with a two-bolt mount, enables to apply fiberglass rods of different diameters from 8 to 10 mm in one foot. The newly designed foot can easily be slid below the first layer of reinforcement and ensures, in an upright position on...

Related articles:

Issue 07/2010 B.T. innovation

„Seven at a time …“

The first innovation came for the successful MagFly® magnets: Now, an aluminum housing encloses the new, lightweight MagFly AP magnet, however, providing strength of more than 2 tons. In total, the...

more
Issue 08/2010 Steel Wave

Innovation for double wall elements

The Kappema technology further enhances the status of the double wall. The wall system, manufactured with the new innovative Kap-Wave elements, optimizes the handling during the production at site,...

more
Issue 03/2017

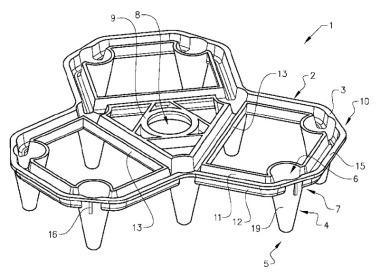

Stackable wall spacer for supporting reinforcement in concrete constructions
